Product overview
Features
- Solid machine made of stainless steel for cleaning anilox cylinders and sleeves from all types of ink
- High-pressure operation for deep cleaning of the cells
- Heating and filtering of the washing liquid for greater cleaning action
- Closed-loop filtration of rinse water for water savings
- Adjustable parameters via digital panel
- Final drying of the anilox by means of compressed air

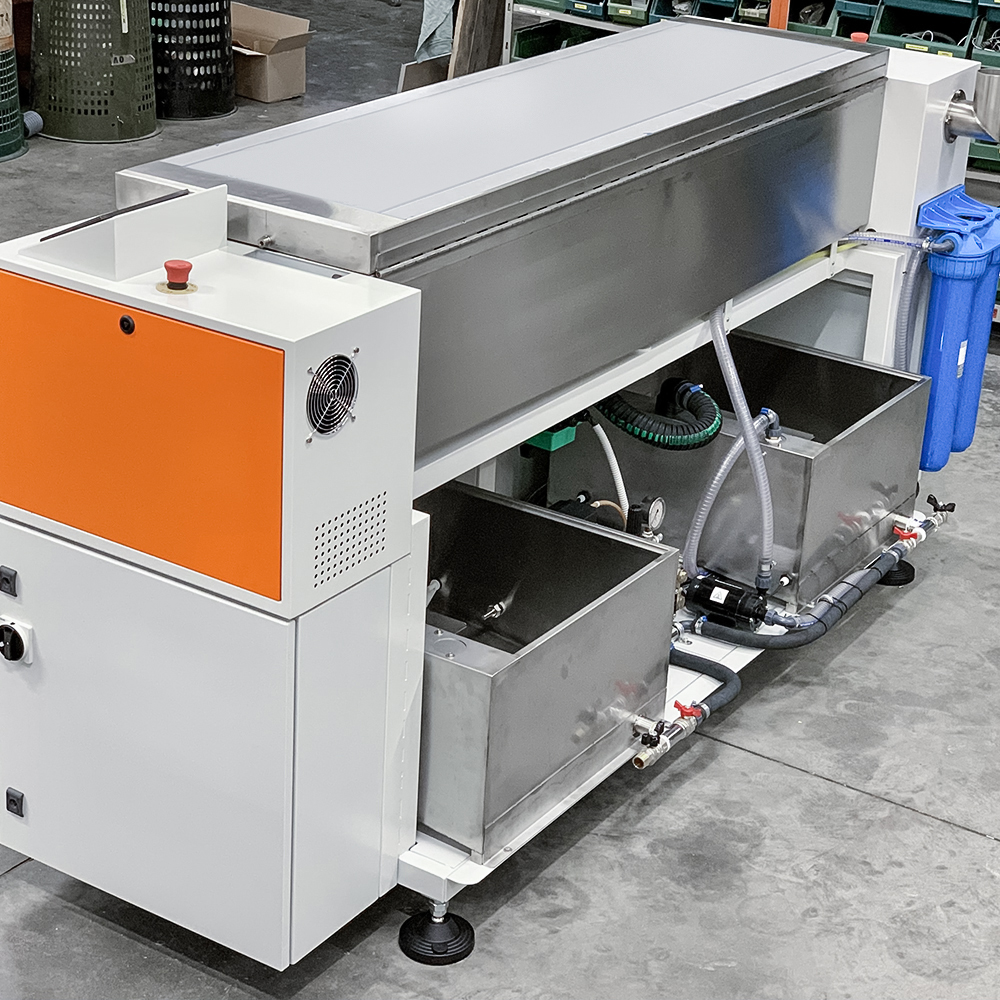

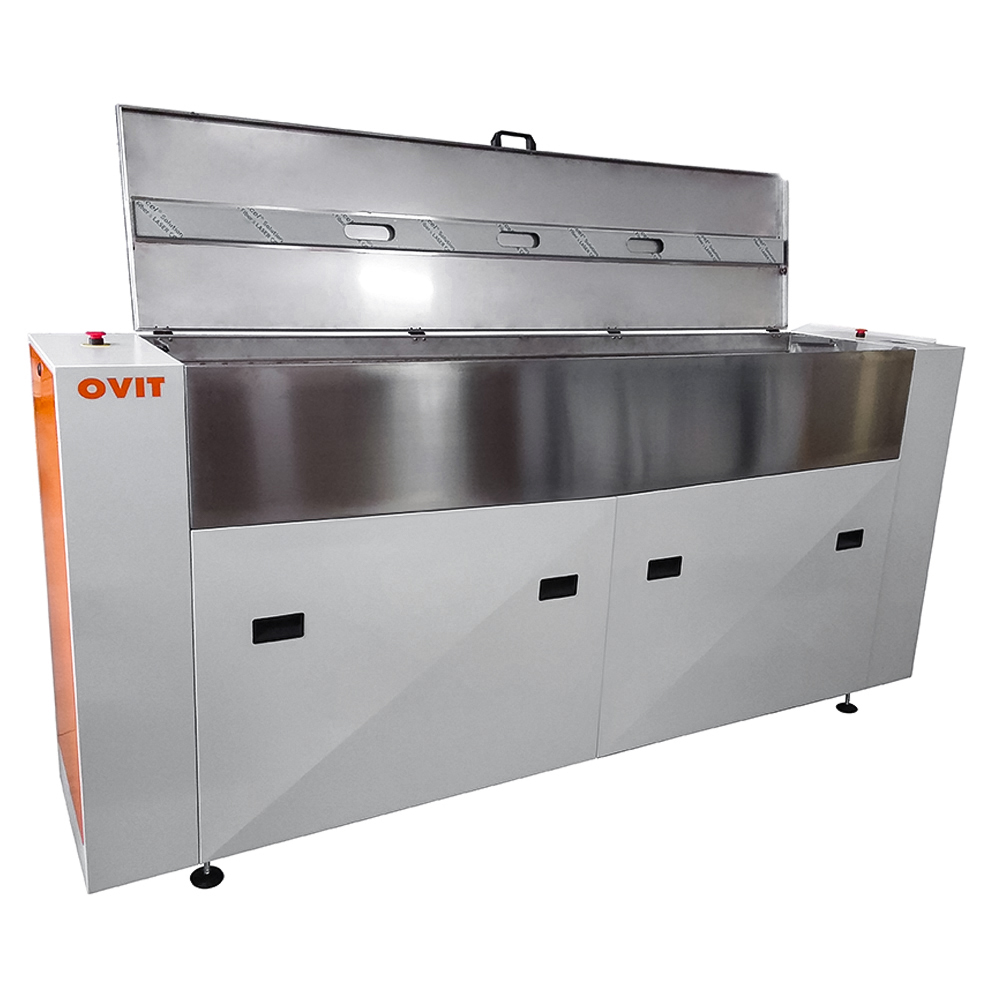

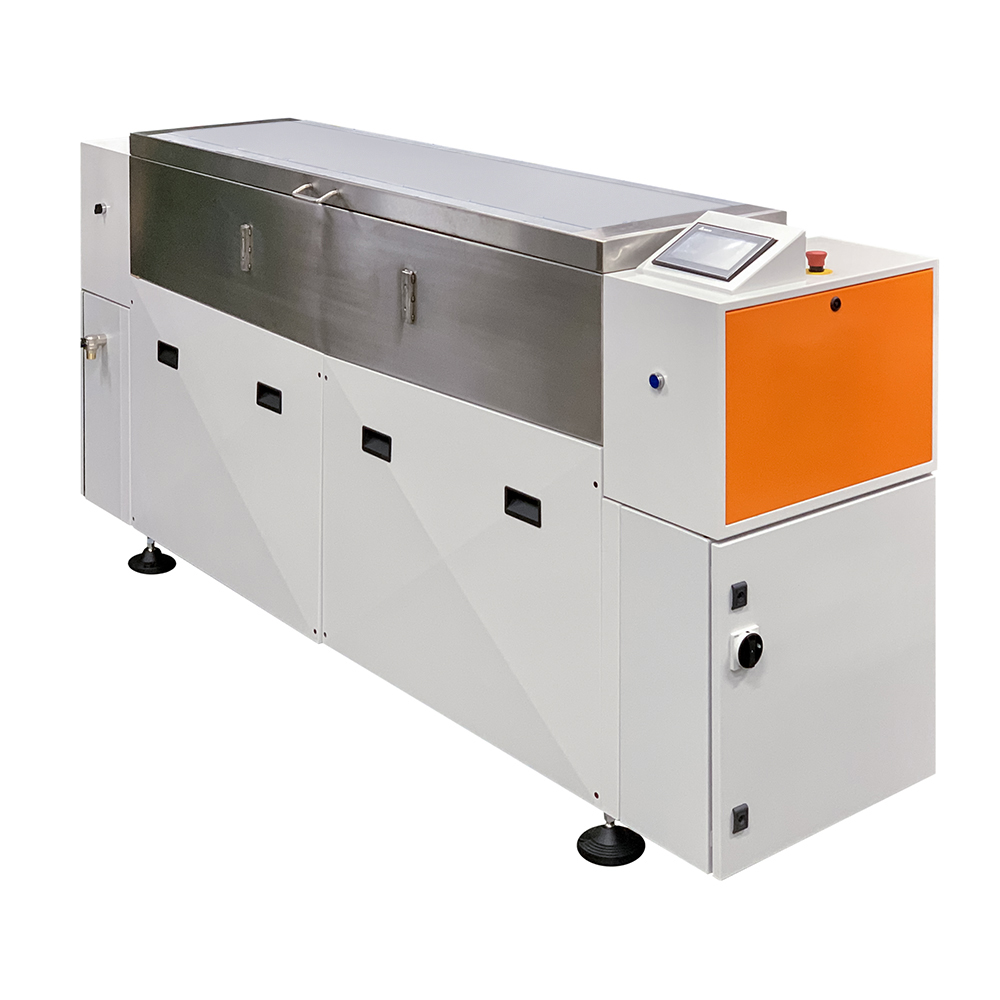

Machine for washing flexographic anilox from all types of ink
The washing cycle is divided into two phases: a first phase with heated detergent and a second phase with a high-pressure heated water jet that ensures deep cleaning of the individual cells.
The heating and filtering of the cleaning liquid ensures a greater cleaning action and durability of the chemical.
The closed-loop filtration of the rinse water allows significant water savings. Drying by compressed air. All parameters can be adjusted from the control panel.
Available models
Model
Useful washing area
Overall dimensions
Certification
Specifications
ANILOXMATIC 1800
1.400 mm for anilox sleeve
1.800 mm for anilox rolls
1.800 mm for anilox rolls
2.600 x 660 x 1.350 mm (L x P x H)
CE
Anilox maximum diameter 300 mm
ANILOXMATIC 2200
1.800 for anilox sleeve
2.200 for anilox rolls
2.200 for anilox rolls
3.000 x 660 x 1.350 mm (L x P x H)
CE
Anilox maximum diameter 300 mm
